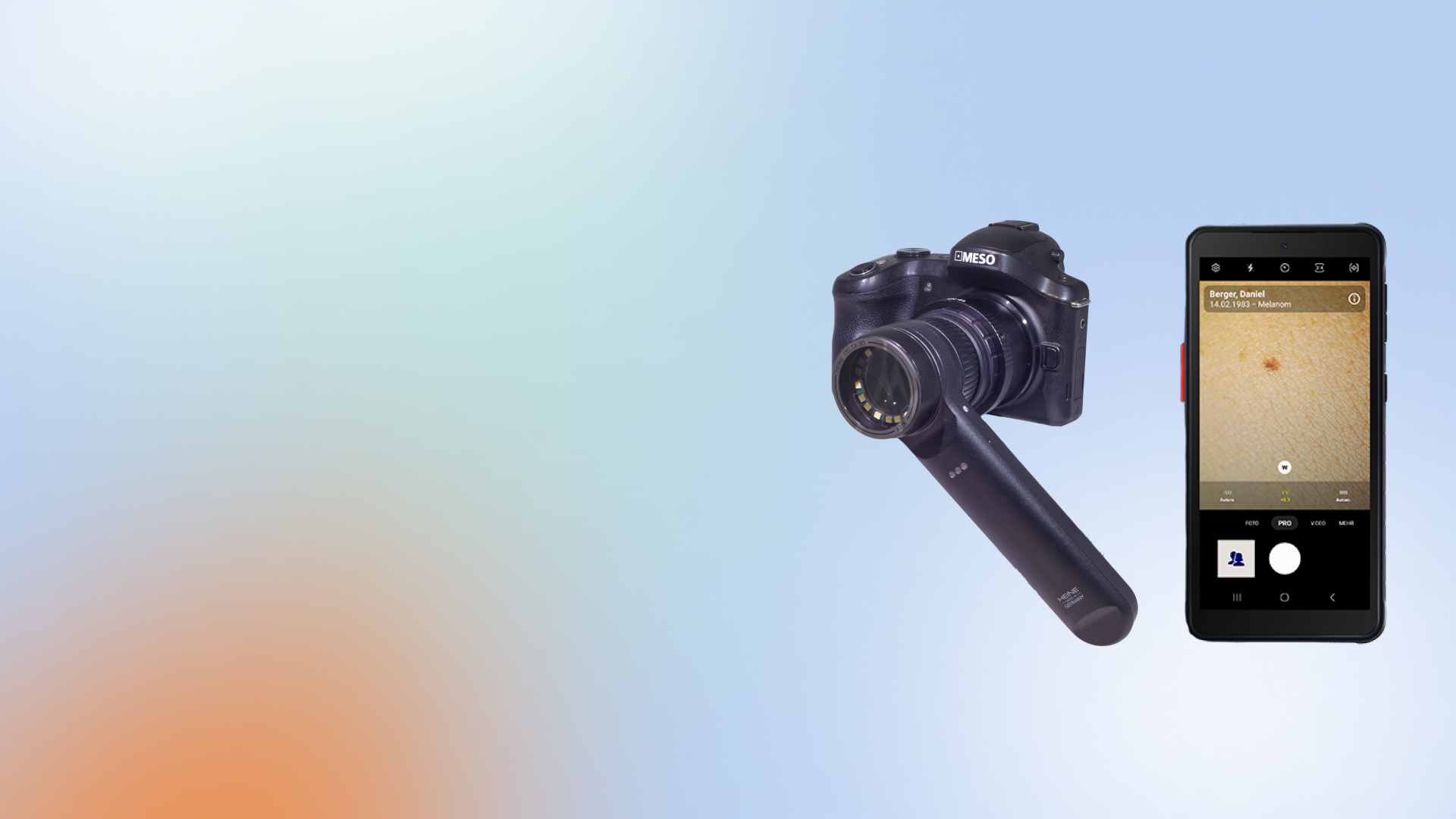

DICOM Camera – speed up your documentation Link

The DICOM Camera is the perfect solution for your medical image documentation.

  • selection of patients or orders by worklist or by scanning the visit number
  • easy and intuitive handling by touchscreen
  • automatic image export to the PACs
Get Demonstrator on Google Play.

Get Demonstrator on Google Play.

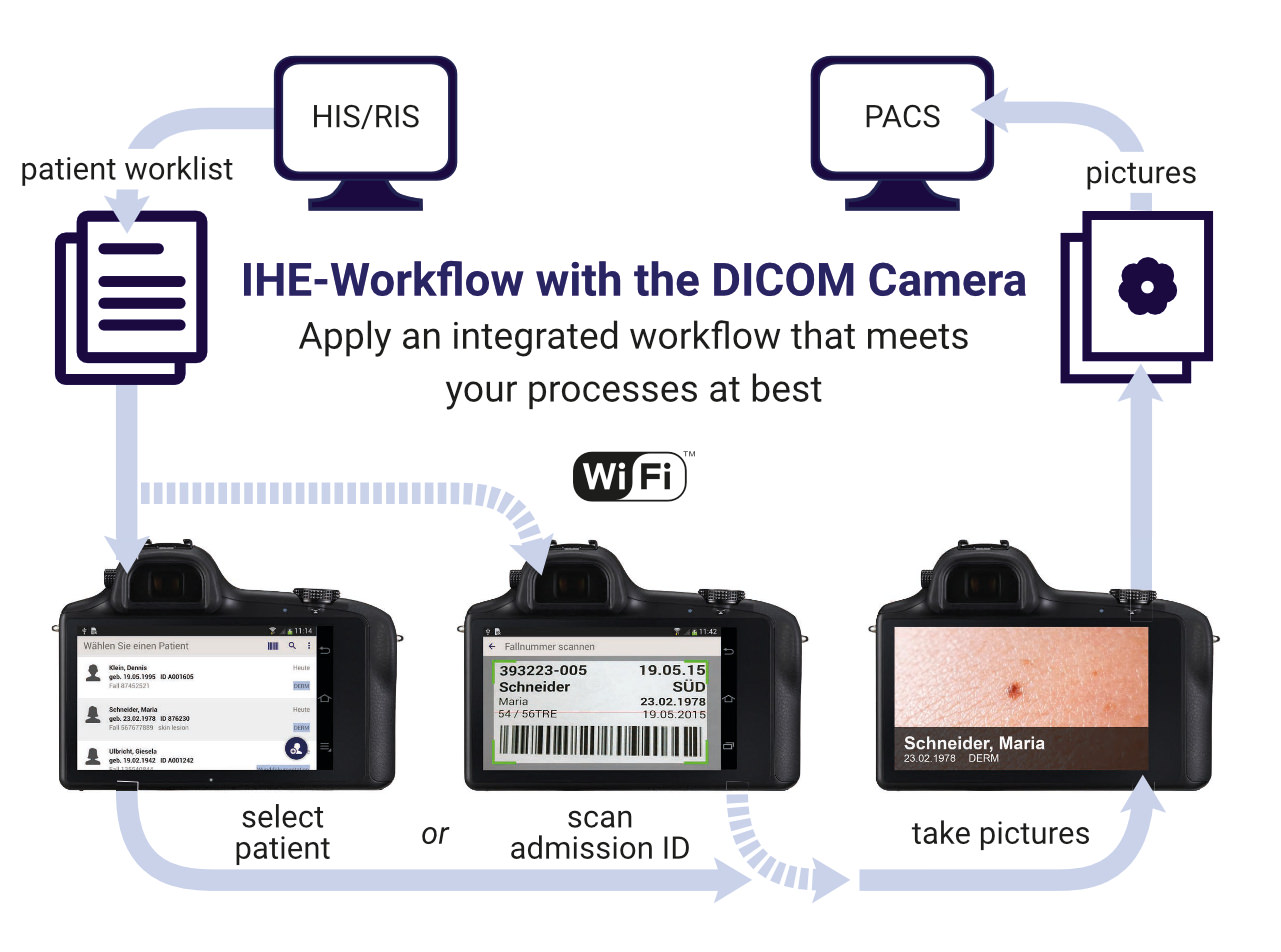

Modernize your antiquated workflow Link

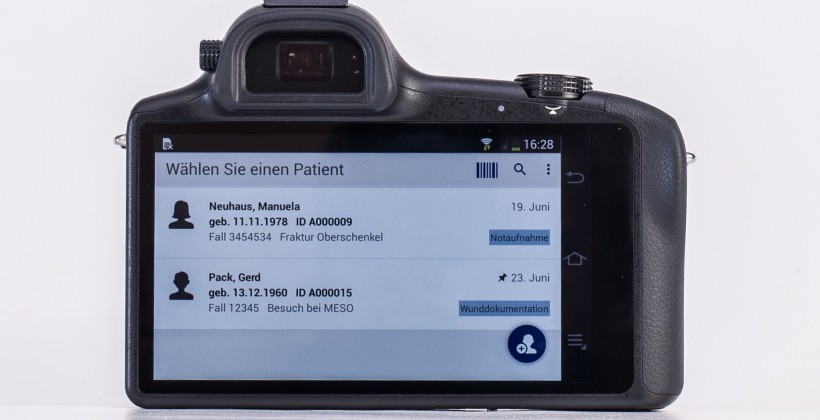

  • comfortable patient selection per touchscreen
  • automatic linking of patient data and images at the time of image acquisition
  • immediate wireless image transfer to your archive
No more manual assignments!

No more manual assignments!

No more juggling with memory cards!

No more juggling with memory cards!


Save time with the DICOM Camera Link

Spend more time with your patients and less administering patient data.

Time comparison between DICOM Camera (30 seconds) and traditional cameras (3,5 minutes)

Central administration Link

All cameras receive their updates and configurations automatically by WiFi.

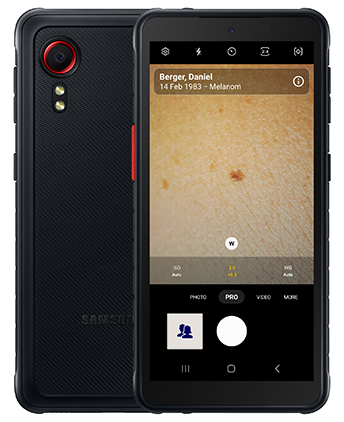

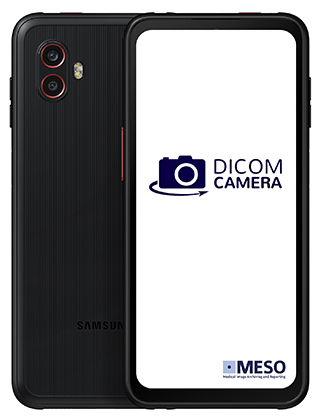

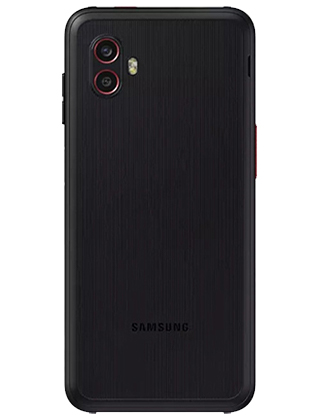

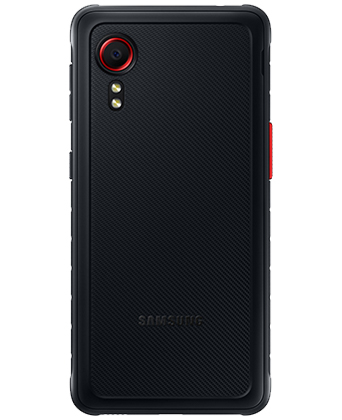

DICOM Camera Compact 5 and 6 Link

  • two handy compact cameras
  • touch screen
  • robust design
  • replaceable battery
  • docking station for charging available

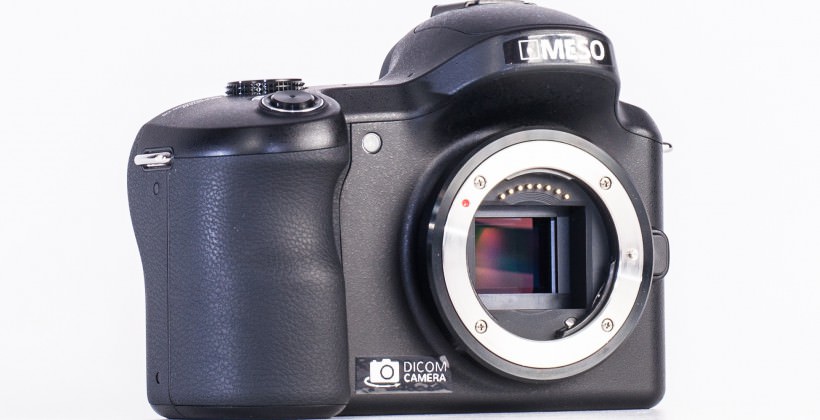

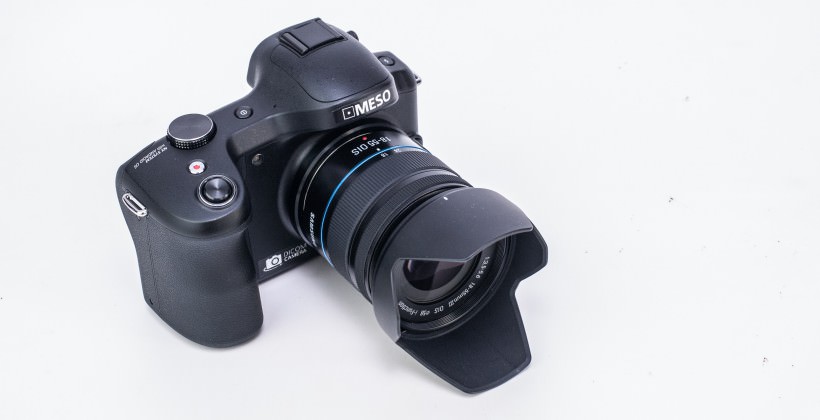

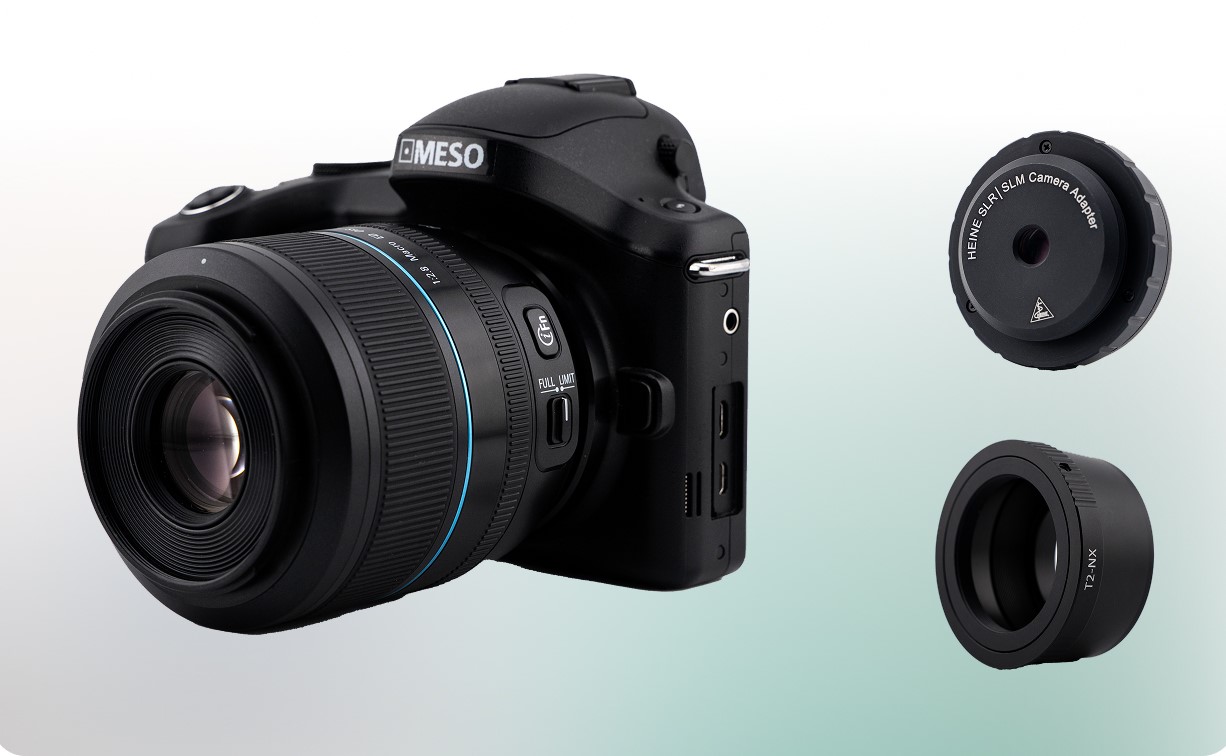

DICOM Camera Pro – for a wide range of applications Link

  • interchangeable lens camera with integrated flash
  • touch screen

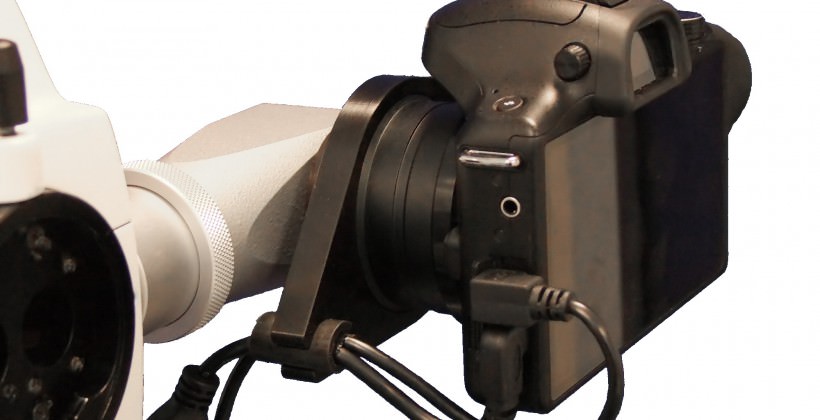

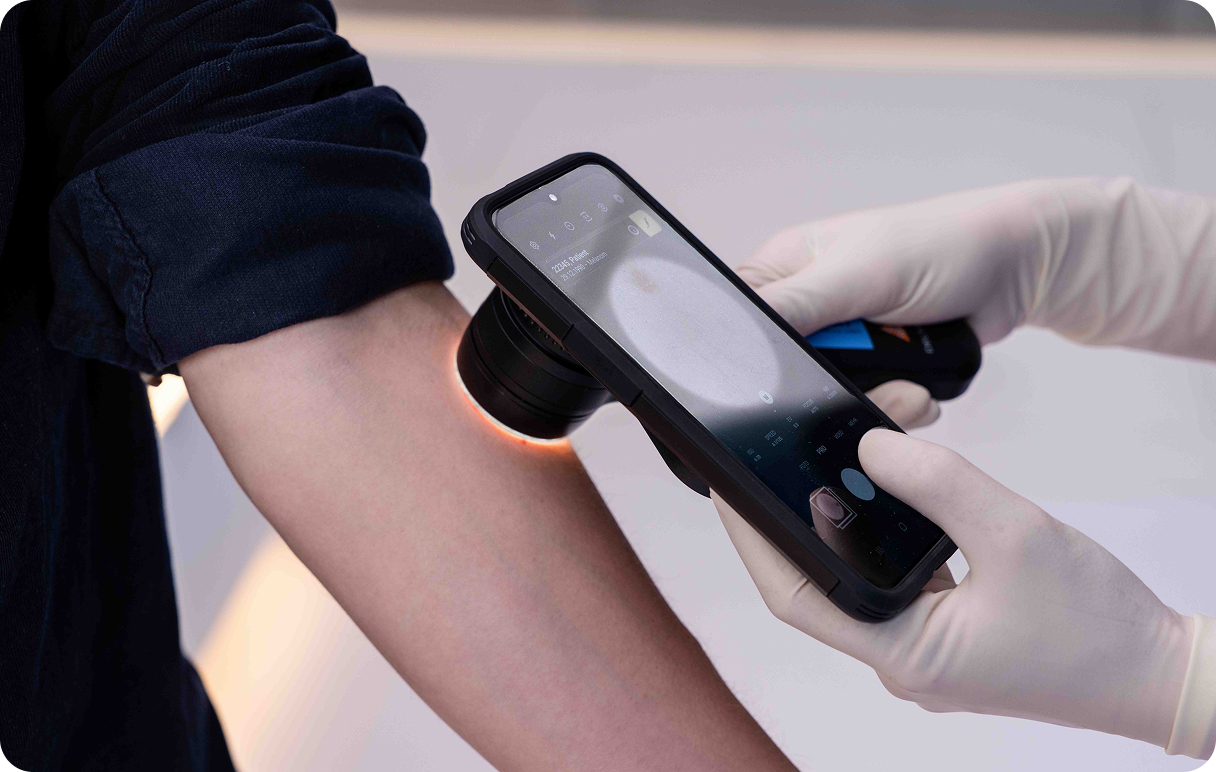

  • connectable to dermatoscopes, colposcopes, microscopes etc.

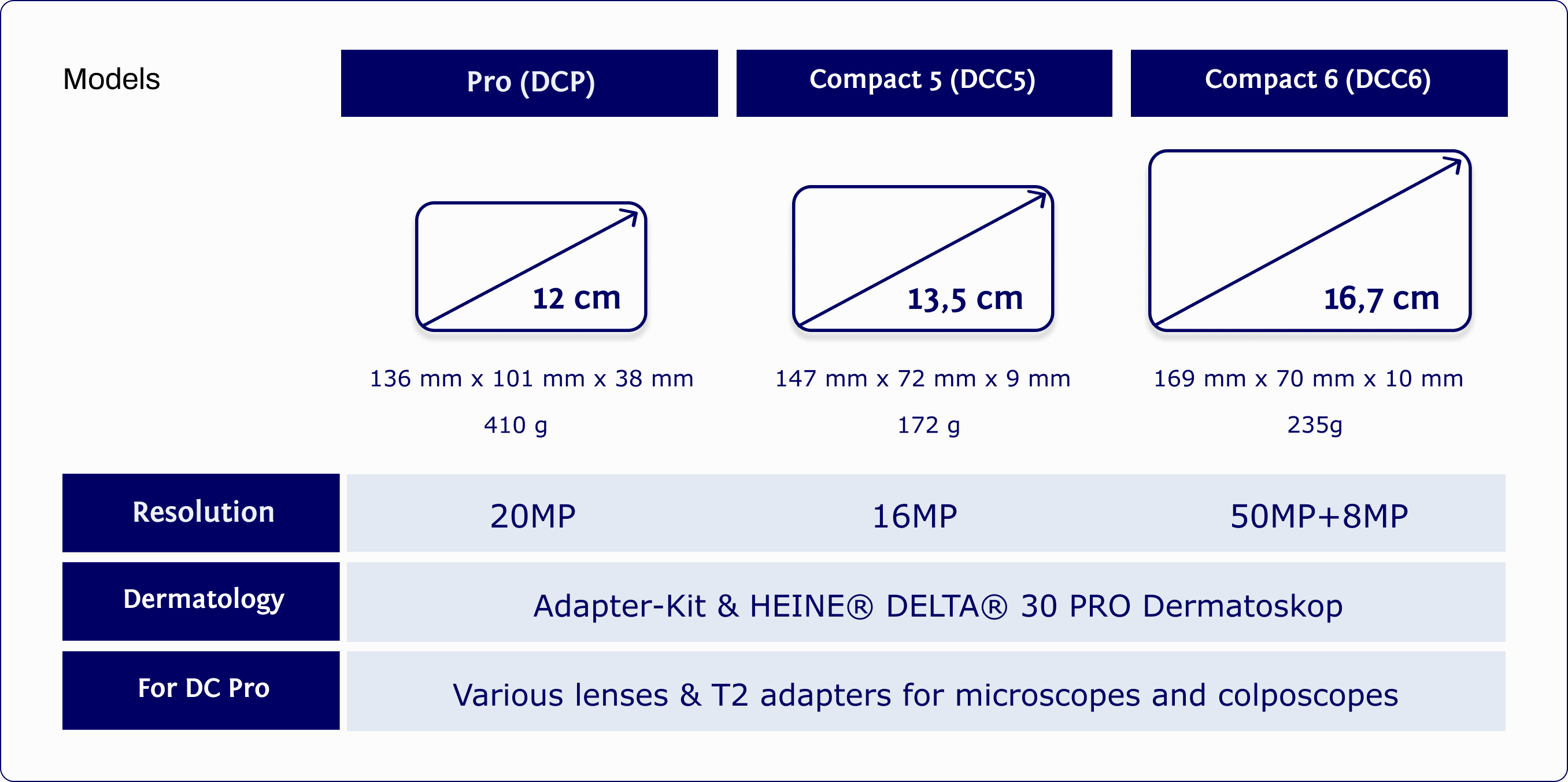

DICOM Camera Compact 5 DICOM Camera Compact 6 DICOM Camera Pro
Sensor 16 MP CMOS 50 MP + 8 MP CMOS 20,3 MP-APS-C CMOS
Optics fixed focal length F1.8 fixed focal length F1.8
fixed focal length F2.2
3x zoom lens 18-55 mm F3.5-5.6
macro lens 60 mm, F2.8
wide-angle lens 16 mm, F2.4
adapter available, e. g. for dermatoscope and mikroscope
view finder - - electronic
flash integrated integrated integrated and flash socket
dimensions 147.1 x 71.6 x 9.2 mm 168,8 x 79,9 x 9,9 mm 136,5 x 101,2 x 37,7 mm (Body)
Gewicht 172 g 235 g 410 g (Body) + 204 g (3-fach zoom lens)
touchscreen 13,46cm (5,3“) 1480 x 720 (HD+) 16,76cm (6,6“) 2408 x 1080 (FHD+) 12,2 cm (4,8“) 1.280 x 720 (HD)
WiFi 802.11 a/b/g/n/ac, WPA2 Personal+Enterprise, MIMO 802.11 a/b/g/n/ac/ax, WPA2 Personal+Enterprise, MIMO 802.11 a/b/g/h, WPA2 Personal + Enterprise
Degree of protection IP68, MIL-STD 810H IP68, MIL-STD 810H IP20
interfaces HL7, DICOM, GDT
administration All cameras receive their updates and configurations automatically by WiFi.

Currently DICOM Camera software version 2.4.6 is available.
